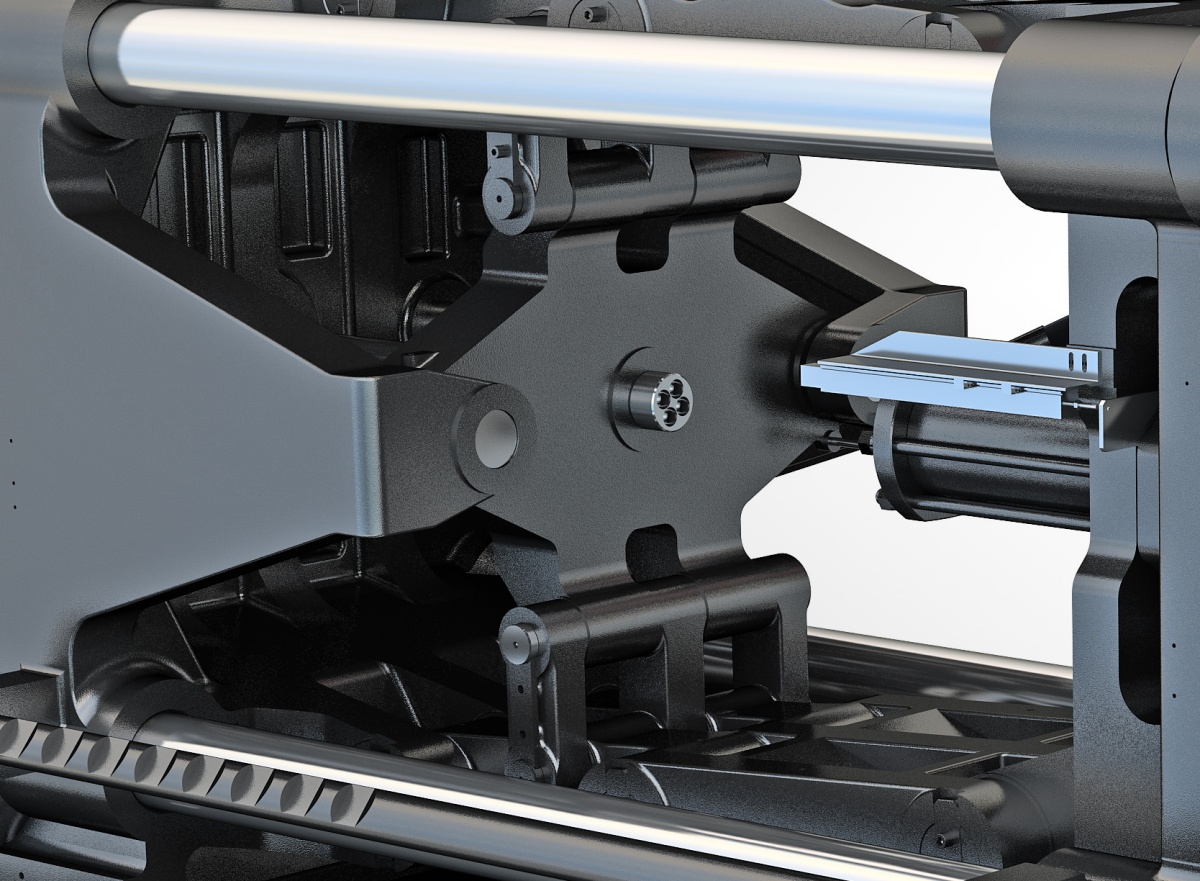

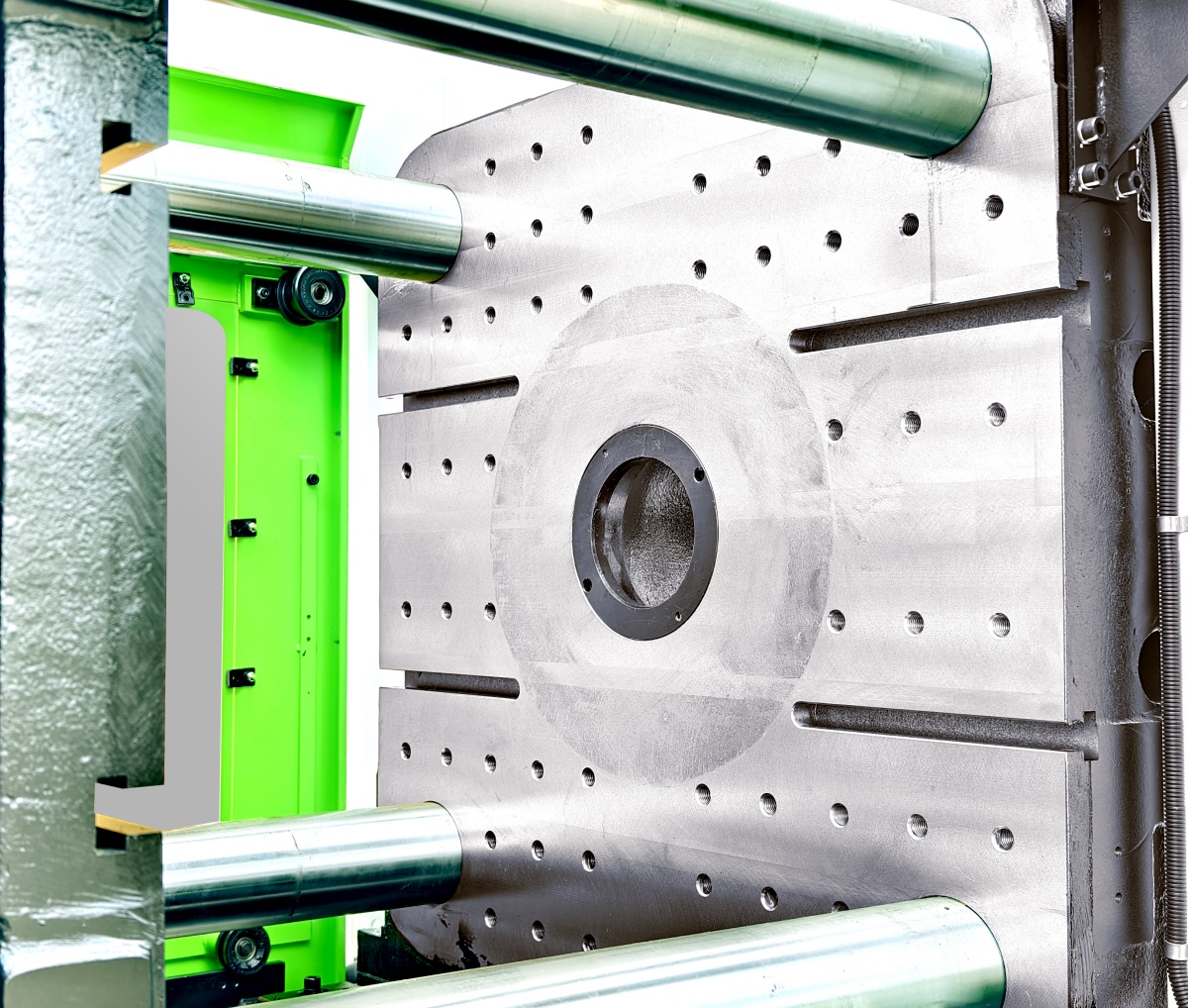

鎖模機構

Clamping Unit

●鎖模高剛性低變形設計

●機鉸特殊熱處理鋼套配置，耐磨能力更強

●優化模塊設計，具有更大的容模空間

●鎖模部分采用高壓定量式的潤滑系統，在高速生產時，更有利機鉸保護

●自動潤滑系統減少維護保養成本

● Clamping's high rigidity and low deformation design The toggle's special heat treatment steel casing configuration has stronger abrasive resistance

●Optimized the platen design to make it has a larger wing mode space

●Clamping adopts high pressure quantitative type lubrication system,and it is more favorable to the protection of the machine in the high speed production

●Automatic lubrication system reduces maintenance costs

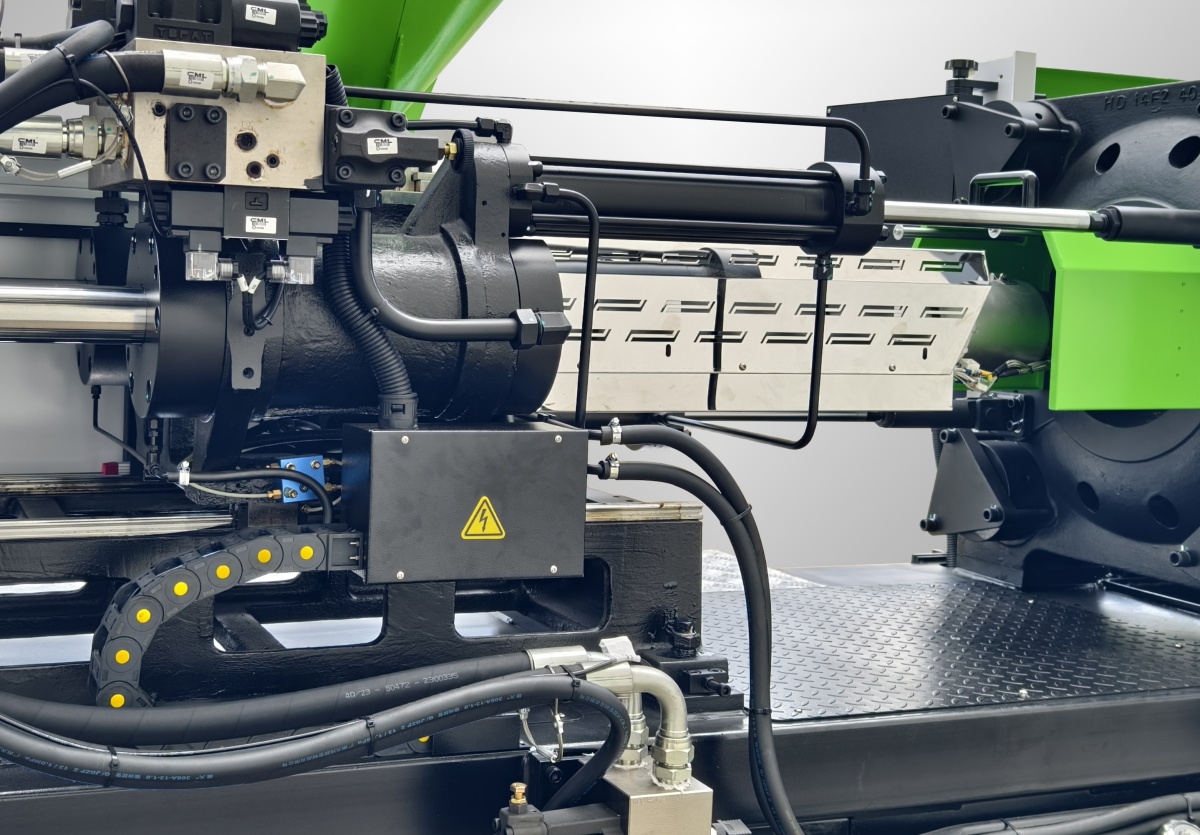

 注射機構

Injection Unit

●塑化組件全新設計，使用性能更優

●移射油缸對角布置，使螺桿料筒在注射過程中受力更均勻

●射臺支撐采用高精度線性導軌，大大降低機械損耗，提高整機性能(90-850SeKII/S)

●The new design of plastic components'performance is better

●The injection cylinder is provided with a diagonal setting,so that the screw barrel can be uniformly stressed duringthe injection process

●Linear guide rail greatly reduces mechanical loss and improves machine performance (90-850SeKII/S)

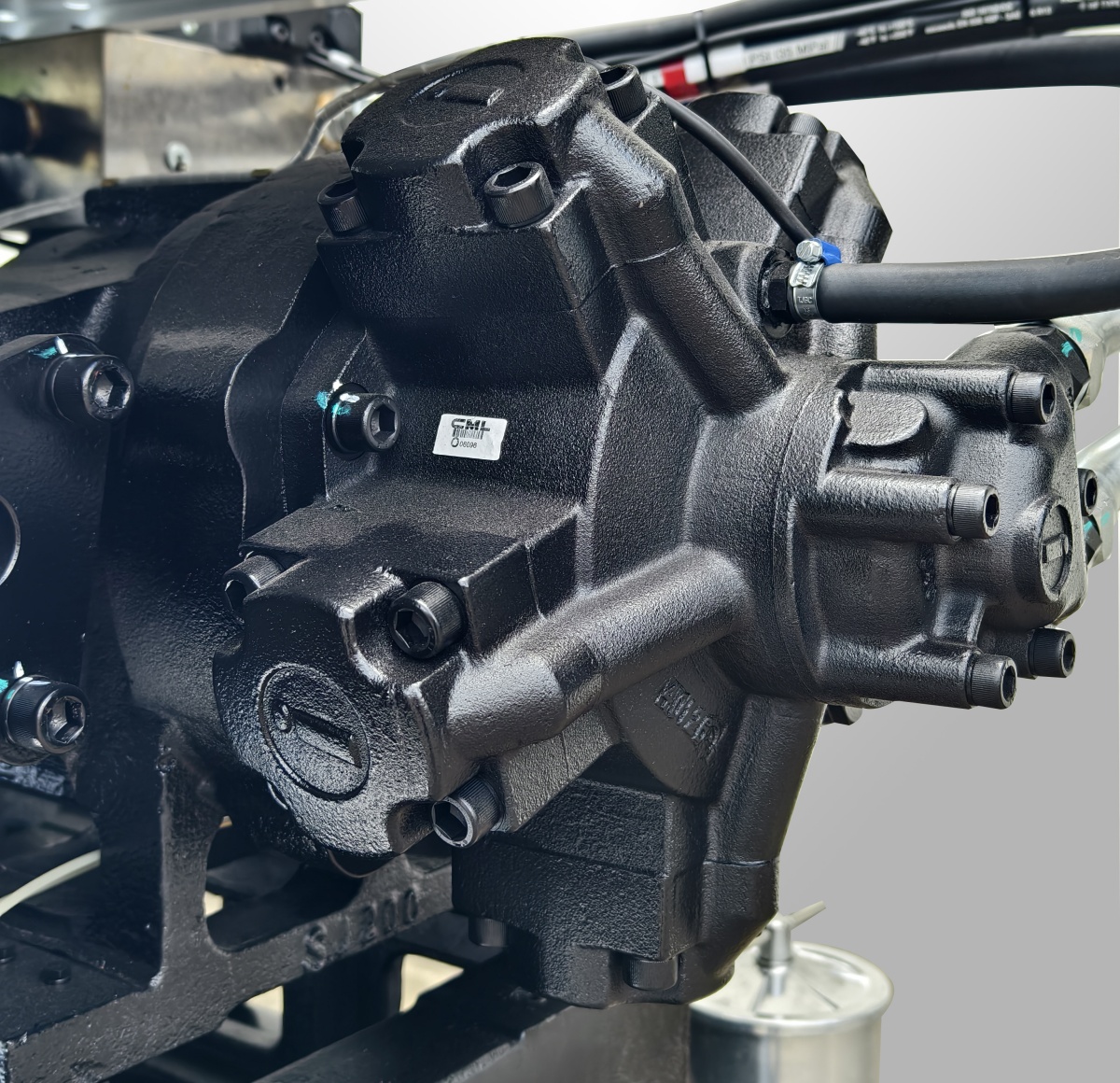

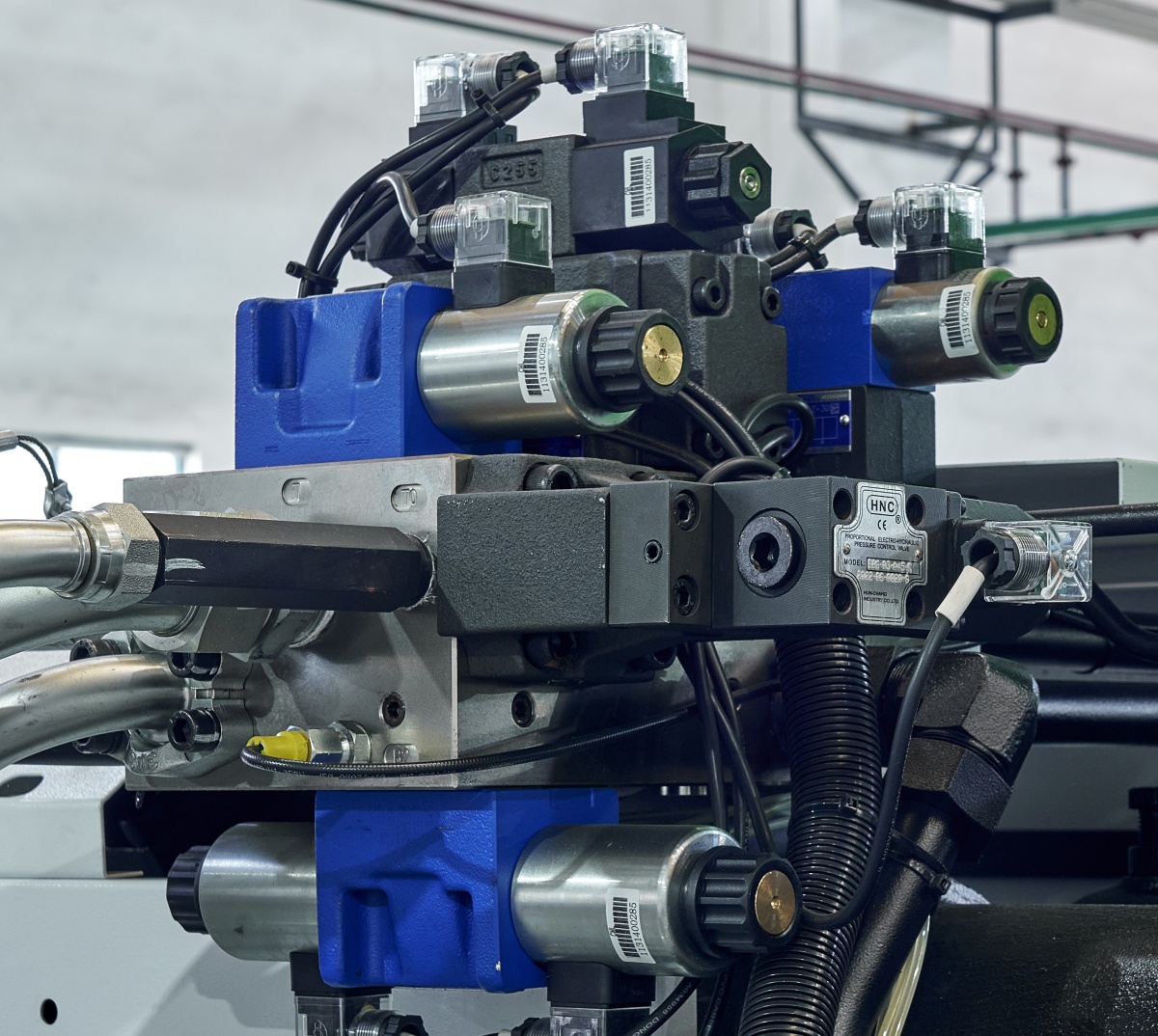

 液壓控制系統

Hydraulic System

 ●高效穩定的伺服液壓系統配置

 ●優化的液壓管路設計，把能耗損失降低到最低

 ●低噪音系統設計，使用環境更加友好

 ●The configuration of servohydraulic system is efficient and stable

 ●The optimization of the hydraulic pipeline design can make the energy loss to a minimum

 ●Low noise system design can make the use of the environmentmore friendly

 軟件及功能

Software & Functions

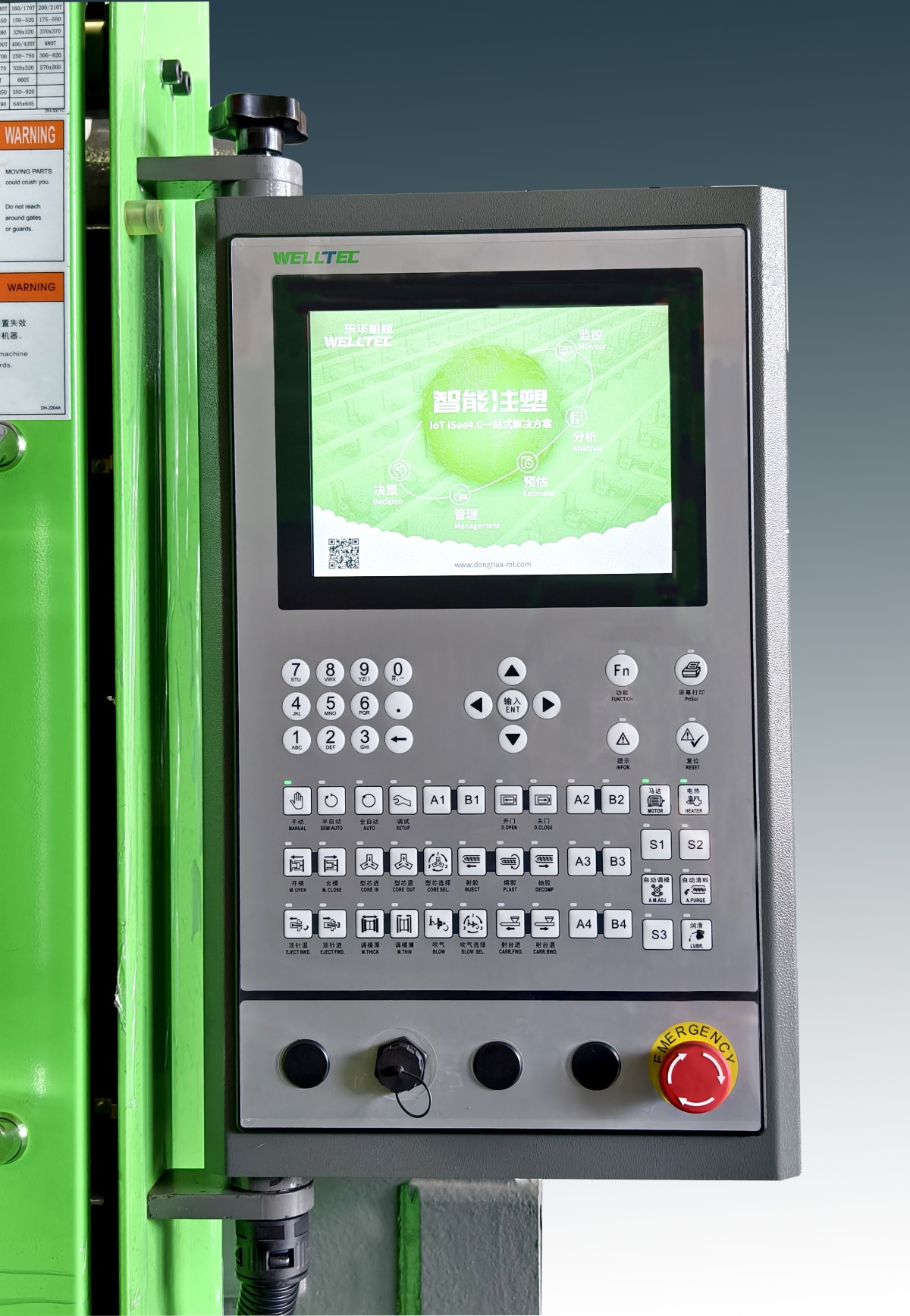

●標配8”或10°TFT彩色液晶觸摸按鍵一體式顯示屏

●開合模、注射、熔膠，頂針全閉環控制

●6段注射，5段保壓，5段熔膠，壓力流量曲線顯示

●螺桿轉速顯示料筒預熱功能

●500套模具參數，2,000組SPC統計記錄，可導出EXCEL文檔編輯分析

●系統響應速度快，控制精度高

●用戶數據無需電池保存，永久不丟失

●支持iSee4.0雲端概器監控及遺程技術支持功能(備選)

遠程監控軟件允許客戶自由的在任何地區及任何時間觀察機器的畫面顯示，查詢機器的狀態及獲得機器的質量報告，顯示內容與親身在車間現場核查數據相同(備選)

●8“or 10”(optional)TFTcolor touchscreen display

●Closed-loop control for mold open/close,injection,plasticizing and ejector

●6-stage injection,5-stage pressure holding,5-stage plasticizing coupled withPressure -flow curve display Screw RPM display and Barrel preheating function

●500 setsof mold data and 2,000 sets of SPC record.Data export to EXCEL for analysis

●Quick system response with high precision control

●Non battery reliance for permanent system data storage

●iSee 4.0 cloud-based machine monitoring,remote technical diagnosis and supports (optional)
